Eagle vision 1 piece adjustable 108moa 34mm scope mount picatinny

^{This well-designed scope mount allows the scope to move vertically along a guided path. The mount is lockable in different positions using two screws.}

^{The mount can be used as low profile or adjusted the to high profile too if your scope objective its too close to your rifle barrel or shroud.}

^{This practical patent helps shooters who enjoy long-range shooting and often run out of adjustment clicks on their turrets.}

^{The mount can also come handy if you have not been able to use your favorite scope due to lack of space between the rings or unusual position of your dovetail or picatinny rail on your gun.}

^{We are very proud of this product as it has become a “must have” solution among people who love their bullpups.}

^{The design of the mount is dedicated to people who want to improve their performance contrasting with what ordinary mounts allow to do. By keeping the front mount at its lowest and elevating the rear mount to the highest point, you can zero in your gun far beyond what standard mounts allow you to do, without using the clicks on your turrets, hence keeping the optical centre of your scope intact (ideal situation for long range shooting).}

^{Please note: DO NOT use more than 4x elevation screws as you may damage your mount.}

30mm Details:

• ^{Height: 65 mm to 69.5 mm (adjustable)}
• ^{Profil Height: 21 mm}
• ^{Adjustable Height: 4.5 mm}
• ^{Weight: 92 gm each one}
• ^{Centre of the ring to the bottom of the rail: 38 mm in closed position}
• ^{Centre of the ring to the bottom of the rail: 42.5 mm in opened position}
• ^{Ring size: 34 mm}
• Rail size: 21.21 mm picatinny

34mm Details:

• ^{Height: 65 mm to 69.5 mm (adjustable)}
• ^{Profil Height: 21 mm}
• ^{Adjustable Height: 4.5 mm}
• ^{Weight: gm each one}
• ^{Centre of the ring to the bottom of the rail: 38 mm in closed position}
• ^{Centre of the ring to the bottom of the rail: 42.5 mm in opened position}
• ^{Ring size: 34mm}
• Rail size: 21.21mm picatinny

40mm Details:

• ^{Height: 65 mm to 69.5 mm (adjustable)}
• ^{Profil Height: mm}
• ^{Adjustable Height: 4.5 mm}
• ^{Weight:  gm each one}
• ^{Centre of the ring to the bottom of the rail: 38 mm in closed position}
• ^{Centre of the ring to the bottom of the rail: 42.5 mm in opened position}
• ^{Ring size: 40 mm}
• Rail size: 21.21mm picatinny

Item includes:

• 1x Infinity scope mount
• 2x Allen key set – different sizes
• 4x Small spare screws
• 2x spear Large screws

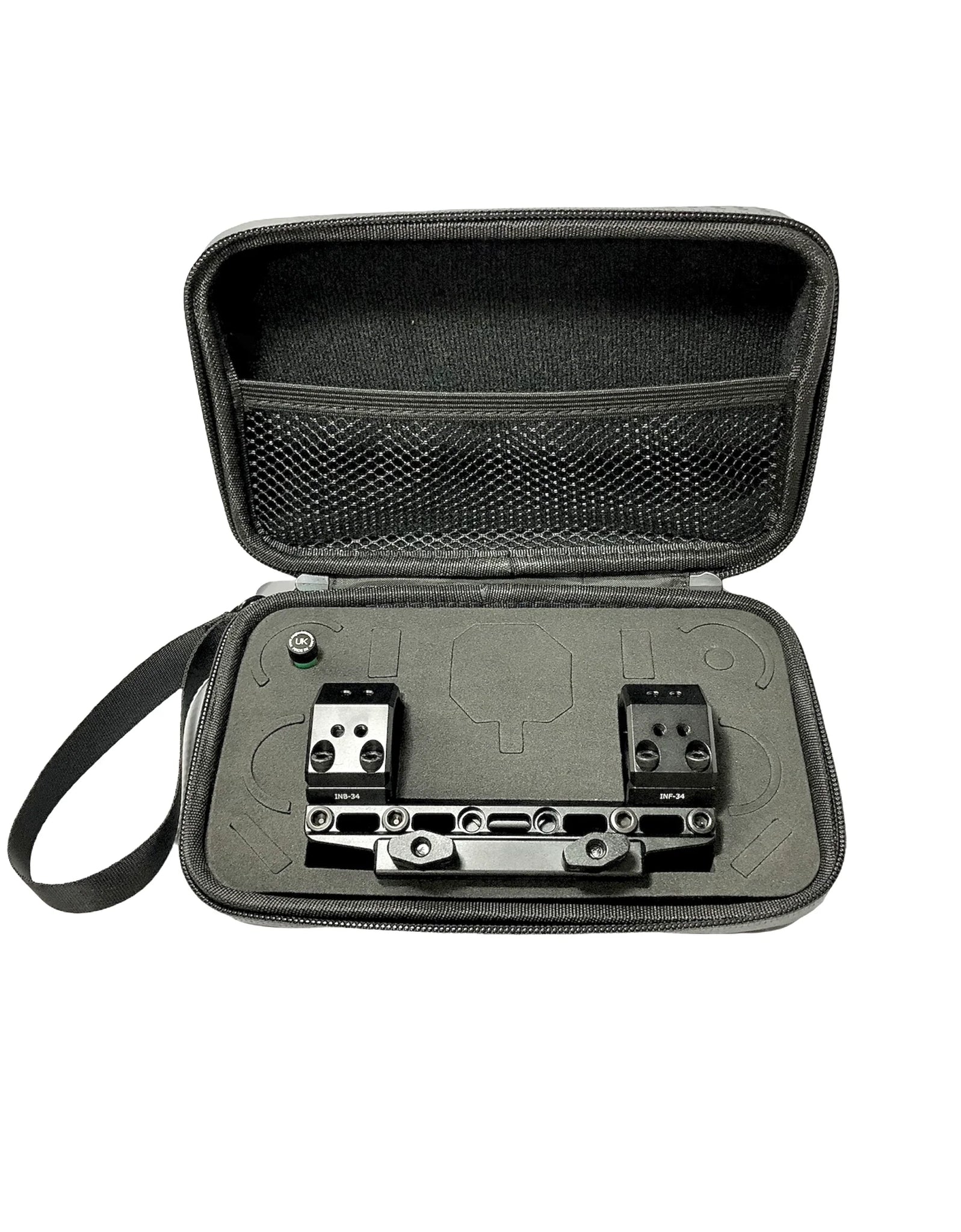

• 1x Waterproof case
• 1x Lens air pump dust blower

Pressure calculation:

Available Accessories

• Mounting Rail Adapter
  Precision-machined adapter converting a 21.21 mm (MIL-STD-1913) Picatinny rail to 11 mm or 13 mm dovetail interfaces for secure and repeatable mounting.
• Ring Adapter
  Reducer inserts for converting 30 mm scope rings to 25 mm, or 34 mm rings to 30 mm, maintaining concentric alignment and proper clamping force.
• Ring-Mounted Picatinny Bracket
  Mini 26 mm Picatinny rail mounted circumferentially around the scope ring. Side-mount configuration allows up to four brackets per ring. Designed for auxiliary devices such as torches, laser aiming modules, or secondary optics aligned with the primary scope.
• Base-Mounted Picatinny Rail
  mini 26 mm or 52 mm Picatinny rail mounted on the side of the base, providing a rigid attachment point for torches or laser devices aligned with the rifle barrel.
• Extension Picatinny Rail
  Available in three mounting positions. Designed to support heavy-duty accessories such as high-output torches or laser devices aligned with the rifle scope. Installed by replacing the top ring components of the mount.
• M4 Screw Bubble Levels
  Available in Yellow, Clear, Blue, Black, Red, Orange, and Green for optimal visibility in varying lighting conditions.
• 360° Bubble Level
  Rotational bubble level allowing installation at any position around the scope mounting system for flexible placement and effective rifle cant control.
• Angle Indicator
  Mechanical inclination indicator displaying rifle angle to assist with ballistic compensation during uphill and downhill shooting.

By adding a 11mm X 80mm to Picatinny adaptor you will be able to use the mount on Picatinny or dovetail rifle rail.

You have 2 way to use this adaptor to your rifle:

1: by tightening a few screws on the side – the adaptor will stay on your rifle

can be locked with 2 x grab screws from top will stay tight and secure.

2: take the side screws off place the adaptor to your scope mount rail

then when tightening the scope mount rail will be squeezed and grab the rifle rail.

“The picture shows that the masers are at 30 mm and 34 mm.”
