Altaros Compressor Booster Unit

Regular price
R 19,695.00
Sale price
R 19,695.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Altaros Compressor Booster Unit

Altaros compressor booster unit was developed and tested since 2011. Final version is tested over 2 years on a much bigger workload than on what is invented, because we are using it daily for filling our airtanks on 300 bars.

Our Altaros compressor booster unit was designed for long service life while only minimum maintenance and service are needed.

For more info about Booster Unit read Bassic Info.

Filling time depends on the output of driving compressor, more info in Performance.

The driving compressor is needed:
We have developed a compressor booster which operates on the principle of an amplifier input pressure to the desired output pressure 300bar (4500PSI). For these reasons, our booster operation needs to be connected to source of low-pressure air, which is most often compressor with low output pressure 6-10bar ie normal workshop compressor. If your low-pressure compressor is more powerful then our booster unit will work faster, resulting in faster performance of high-pressure air.
Long life is assured by slow moving pressure cycle:
Due to the large volume of pistons our compressor is working with significantly lower speed (up to 20x times lower sliding velocity) at the same or greater amount of compressed air supply than what similarly low-speed high-pressure compressors on the market have. Thanks to this slow piston movement and much smaller length movement is seal much less stressed than on higher movement speed. At the same pressure air supply pistons in our compressor travel 10-15x less distance than the high-speed compressor, which also contributes to a further very long seal life.
The self-cooling ensures low operating temperatures and continuous operation :
The compressor booster has a built-in sophisticated cooling system of both cylinders using exhausted compressed air, which allows it to run uninterrupted, without causing excessive heating of the compressor. The surface temperature of the cylinders is approximately 40 ¬į C ( Max around 50¬įC ). Low operating temperature also contributes to even longer seal life.
Maintenance-free operation:
On the basis of the properties described above and due to the fact that our compressor booster does not need lubrication, the compressor operates without the need for ongoing maintenance. In our long-term testing (2 years of daily use), it was found that the compressor without any lubrication or seal replacement managed fulfill around 200 bottles with capacity 4liters of pressure from 200 to 300bar than was necessary maintenance service.
Compressor booster has automatic stop when required pressure in the bottle is reached:

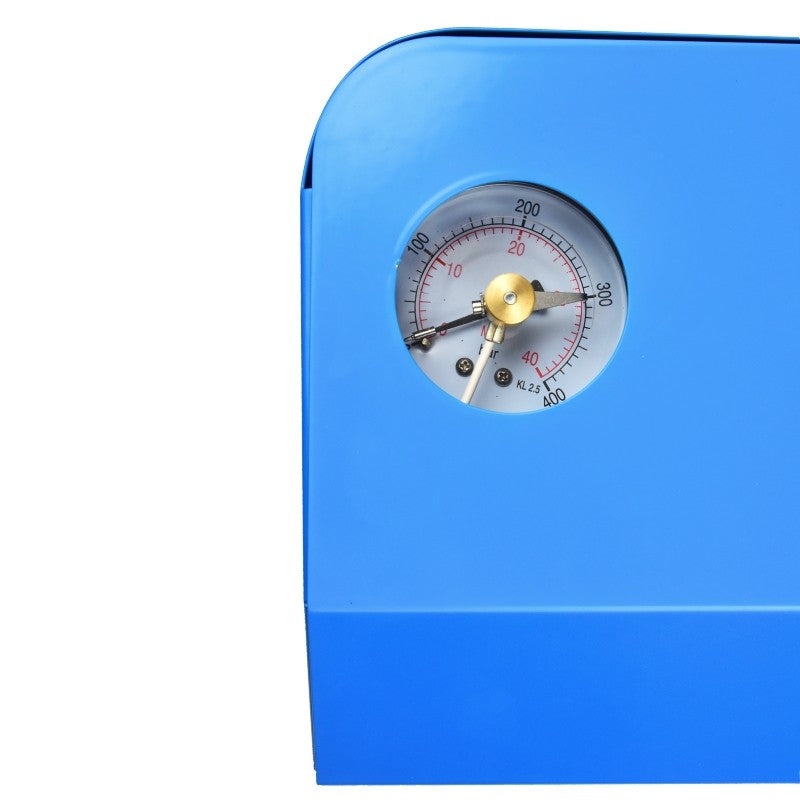

Compressor booster includes an output pressure gauge with an adjustable pressure switch that stops the compressor when the required output pressure is reached. The desired outlet pressure can be set simply by moving the adjustable hand to the desired pressure in the range of 60-300 bar (900-4500 PSI). The compressor switches itself off when the pressure is reached.
The two-stage separator moisture and multiple filtration:
Compressor basically contains cascade system moisture separator from the air, which provides very dry high-pressure air output from the compressor. Thanks to this, it is not necessary to worry about the penetration of moisture into the bottles, or pressure container. At the same time, inlet air is filtered several times to remove impurities. This version contains a transparent chamber to check the humidity of the silica gel.
Easy seal replacement, spare seals set is included in compressor box :
The compressor is designed for easy dismantling, so if it is necessary to exchange any seal then overall time to exchange it should no take more than 15 minutes (the dismantling of the compressor - replacing seal ‚Äď assembly compressor back). At the same time, most current seals on the compressor are already included in the spare set supplied with the compressor. Specific seals can be ordered.
High-pressure hose with multifunction valve:
Our compressor booster is ended with 0.5 meters long high-pressure hose end with multifunction valve with bursting disc on 500Bar (7500PSI), venting screw and pin for paintball coupling. Burst disc is functional protection in the event of over pressurization device and prevents damage to bottling. After unscrewing paintball pin from multifunction valve is there present external thread G1 / 8 (1/8 BSP) on which it is possible to screw a female paintball quick or filling pins for airguns.
Low noise level:
Compressor booster works quietly and in the case of storing blocks of foam rubber to blow-off holes can be achieved even more significantly quieter operation.
Small size, light weight:
The compressor, including the cover box, has dimensions of 17x18x50 cm and a weight of slightly over 7 kg. Thanks to its compact dimensions, it can be easily stored or transported.
Protective outer box:
The outer sheet metal box provides excellent protection of the compressor device itself not only against mechanical damage, but also against surrounding dirt.
Medium pressure gauge for diagnosis :
The output of the medium-pressure cylinder is ended with a medium pressure gauge. This manometer can be used for controlling process and size of medium- pressure in system, which can be very useful for rapid diagnosis of compressor status and for finding specific defects.
Setting air flow screw:
Compressor includes tuning setting screw to reduce air flow from driving compressor This allows adjust in steps the speed of compressor booster and adjust air consumption for less powerful drive compressors so they can work in an effective pressure range.
Warranty: 2 years
Our compressors are supplied with 2 years warranty on mechanical parts or other defects. The guarantee does not apply to all seals. Details in the instruction.

Why use Altaros compressor ?

Save your Time

Are you already tired of the long journey to a distant filling station? Waiting on your turn, waiting until is your bottle filled, or even need to leave your tanks overnight and complete the journey again tomorrow? There is no more need for any of this with our Altaros compressor booster. Connecting bottle to compressor is matter of seconds and actual filling can be done without your presence.

Save your Money
Price for 7 liters filling bottles from 200 to 300 bar, with Altaros compressor is around 25-40 CZK/ 1-2 USD ( in Czech Republic ). On the contrary price when filling bottles at commercial filling station after including all the secondary costs can often rise to 250-500 CZK / 10-20 USD . To the price for the actual bottle, filling is often necessary to add up the cost of transportation to the filling station and also the cost of your time. Model example comparing costs and return on the purchase of the compressor can be found here: Example how fast will compressor purchase cost be back .

You are independent!
How many times has already happened to you that you were forced to interrupt the shooting, even though you were successful, or could not tune the rifle, because pressure in airtank was down and filling station was closed? You will never have to experience this again with Altaros compressor. You can fill your scuba, airgun, or paintball tank at any time and as often as you need. You do not have to restrict yourself in the amount of shooting, tuning your rifles, or filling your airtubes on lower pressure just because your scuba pressure is going down.

Altaros compressor booster unit was developed and tested since 2011. The final version is tested over 5 years on a much bigger workload than on what is invented because we are using it daily for filling our airtanks on 300 bars.

Our Altaros compressor booster unit was designed for long service life while only minimum maintenance and service are needed.

For more info about Booster Unit read Bassic Info.

Filling time depends on the output of the driving compressor, more info in Performance.
