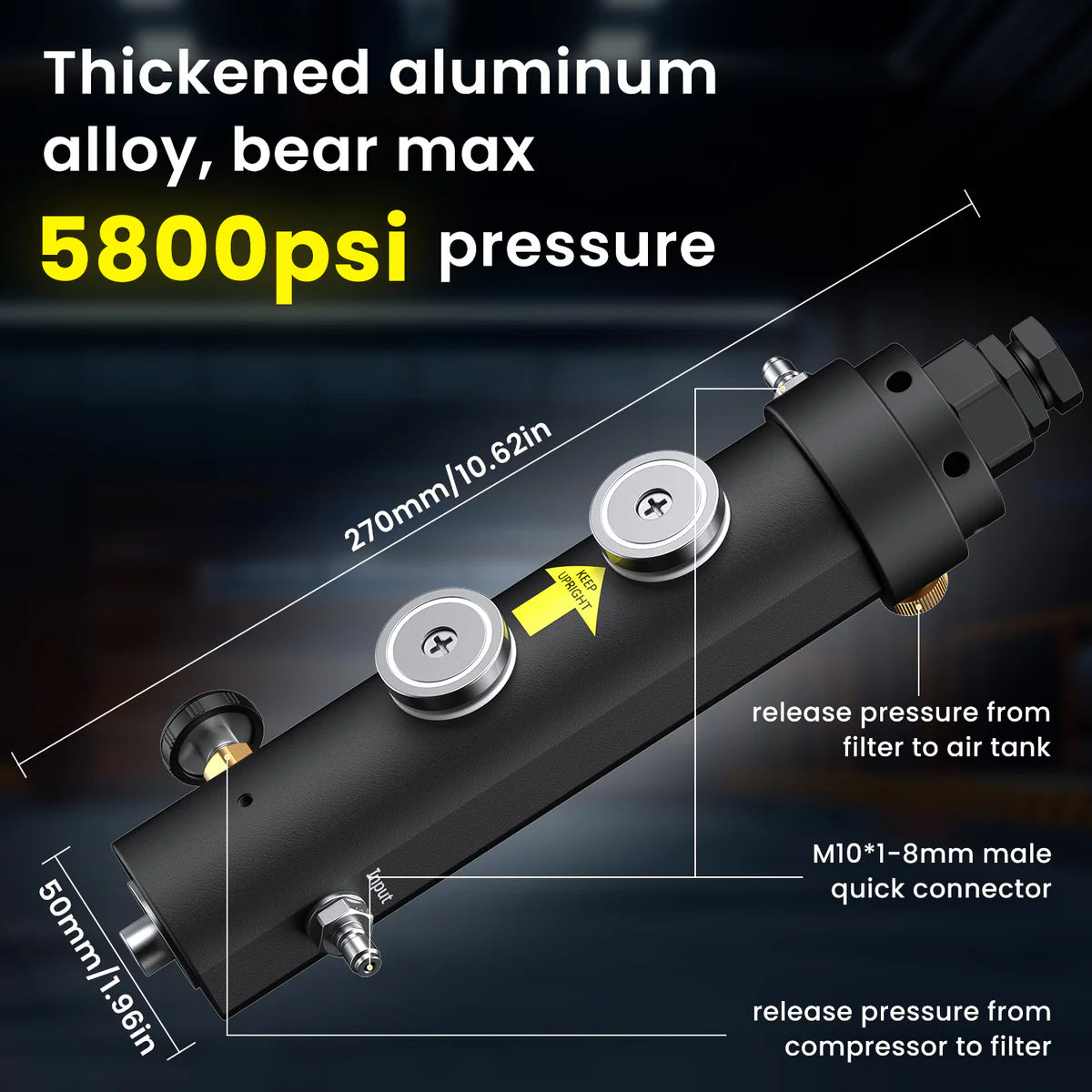

- Heavy-Duty Aluminum Construction: Crafted from seamless aerospace-grade aluminum alloy with 10mm thickened walls (9.68mm actual), this industrial-strength filter withstands 5000+ PSI pressure while featuring anti-slip texture for secure grip and scratch resistance.

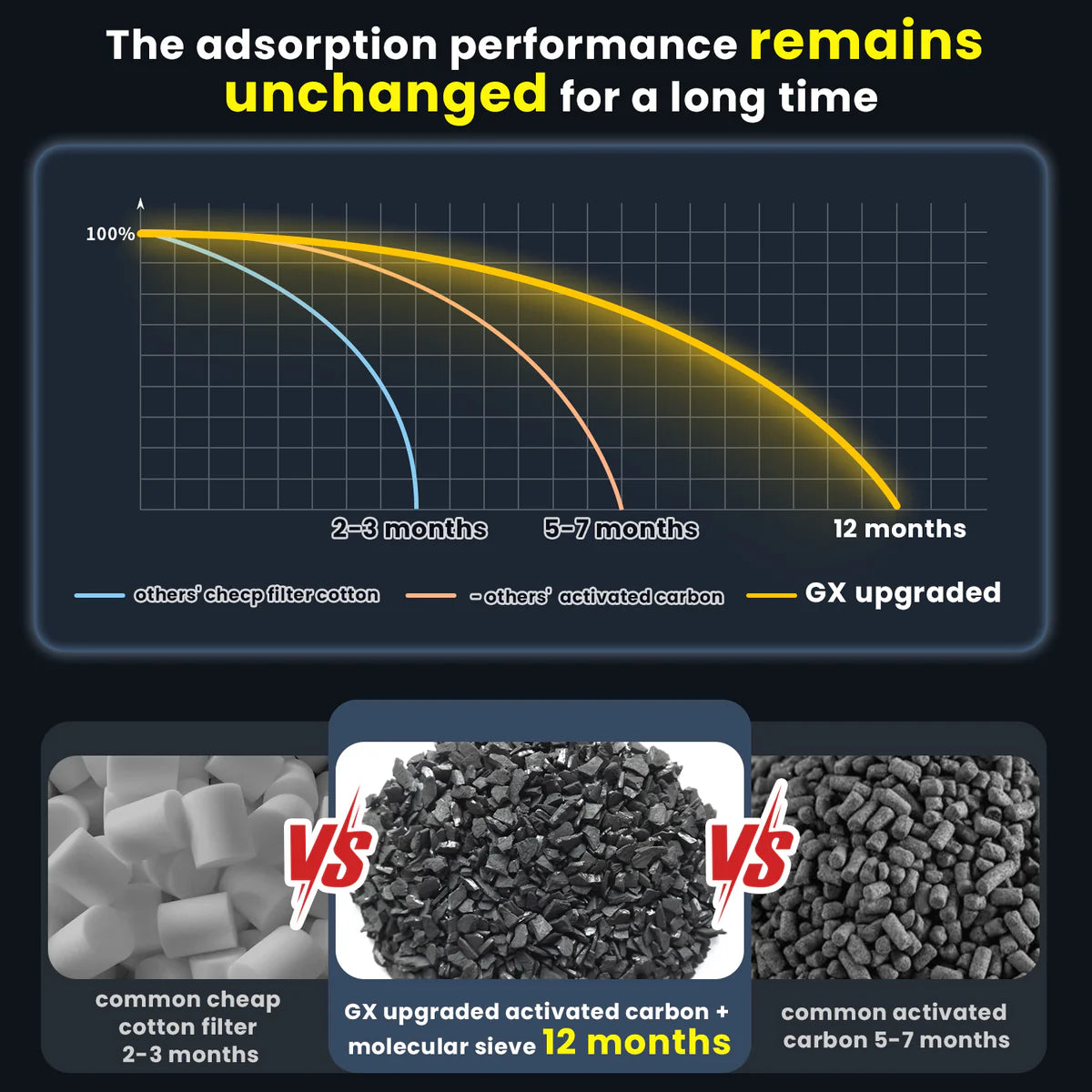

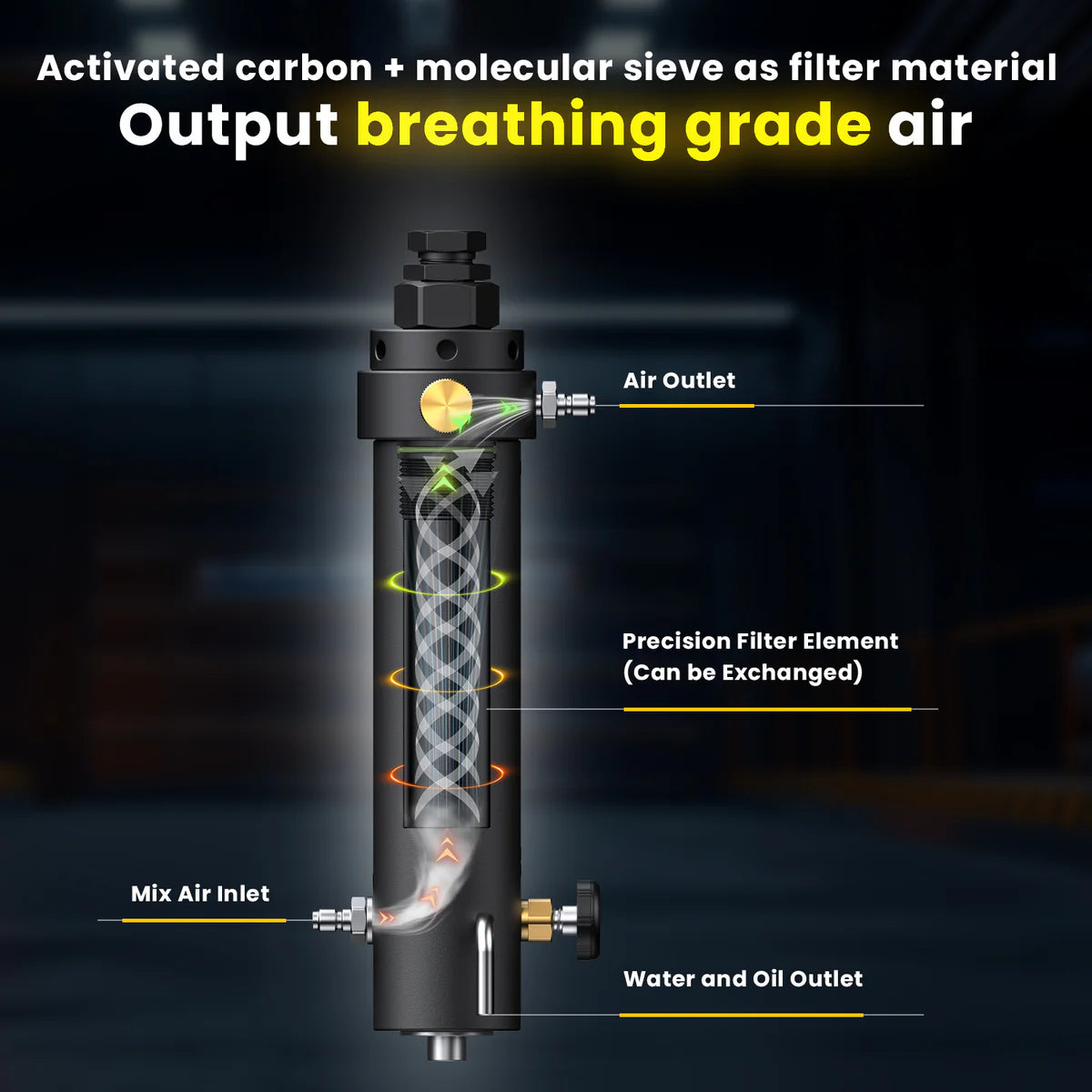

- Ultra-Efficient Filtration System: Dual-layer purification with activated carbon + molecular sieves removes 99% of oil, water, and microparticles (down to 0.01μm), delivering breathing-grade air output to protect your PCP rifles and diving equipment from moisture damage.
- Universal Compatibility :M10×1 thread & 8mm quick-connect design works flawlessly with GX pumps (CS1/CS2/CS3/CS4-5K), and other brands 95%+ PCP compressors. No adapter needed!
- Smart Dual-Stage Pressure Release :Top brass valve: Safely depressurize filter-to-tank, Bottom valve: Rapid compressor-to-filter pressure dump. Pro Tip: Always connect compressor hose to "INLET" port.

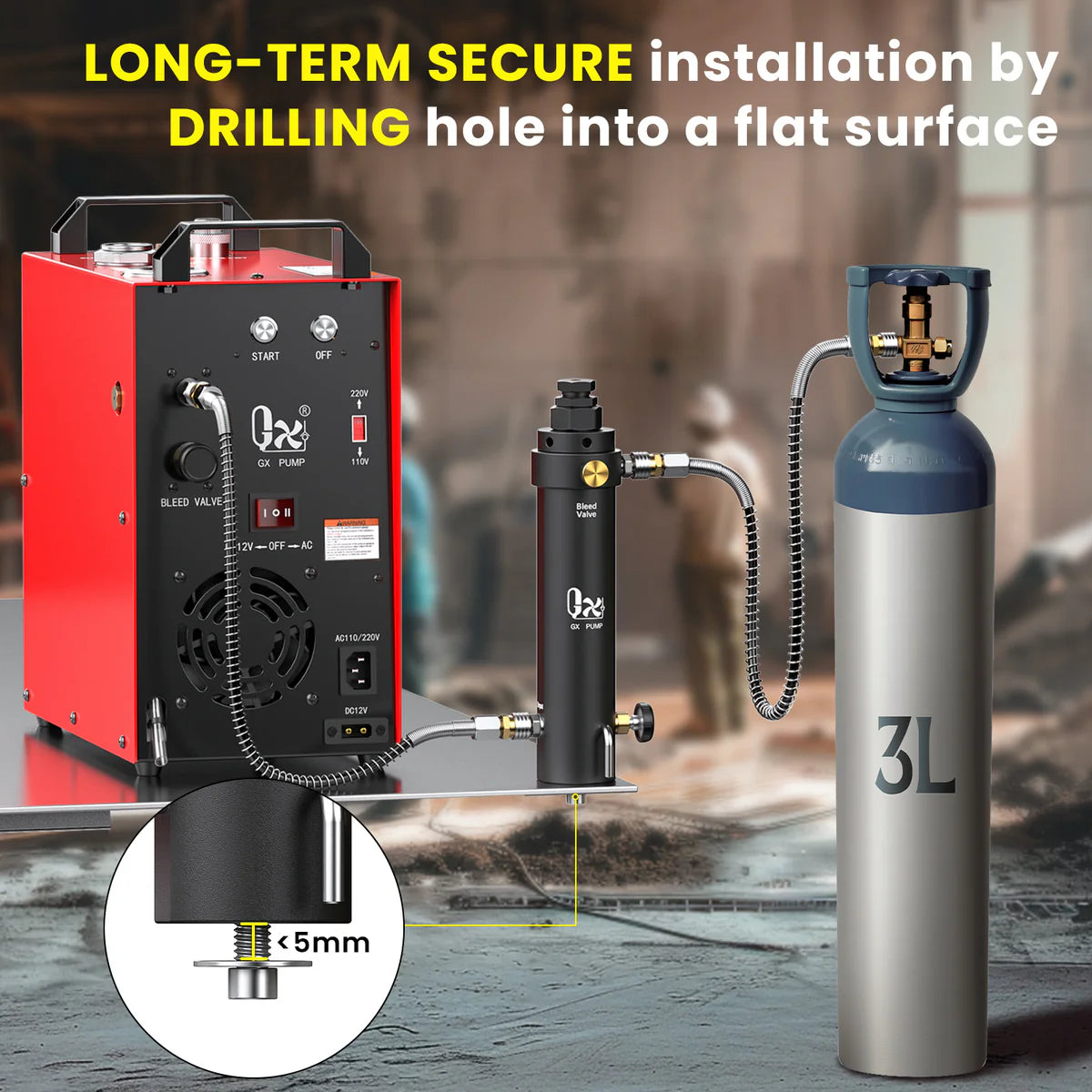

- Two Mounting Choices: 1, Secure Magnetic Mounting: The filter's side panel features three pre-drilled screw holes. Simply install two included industrial-strength magnets (screws provided) for ultra-stable adhesion to your compressor body. 2,Drilling and Screw Fastening： The filter base is equipped with a hex screw that can be used to drill holes on surfaces with a thickness below 5mm for long-term secure fastening. Of course, you can also use it flat on your desktop.

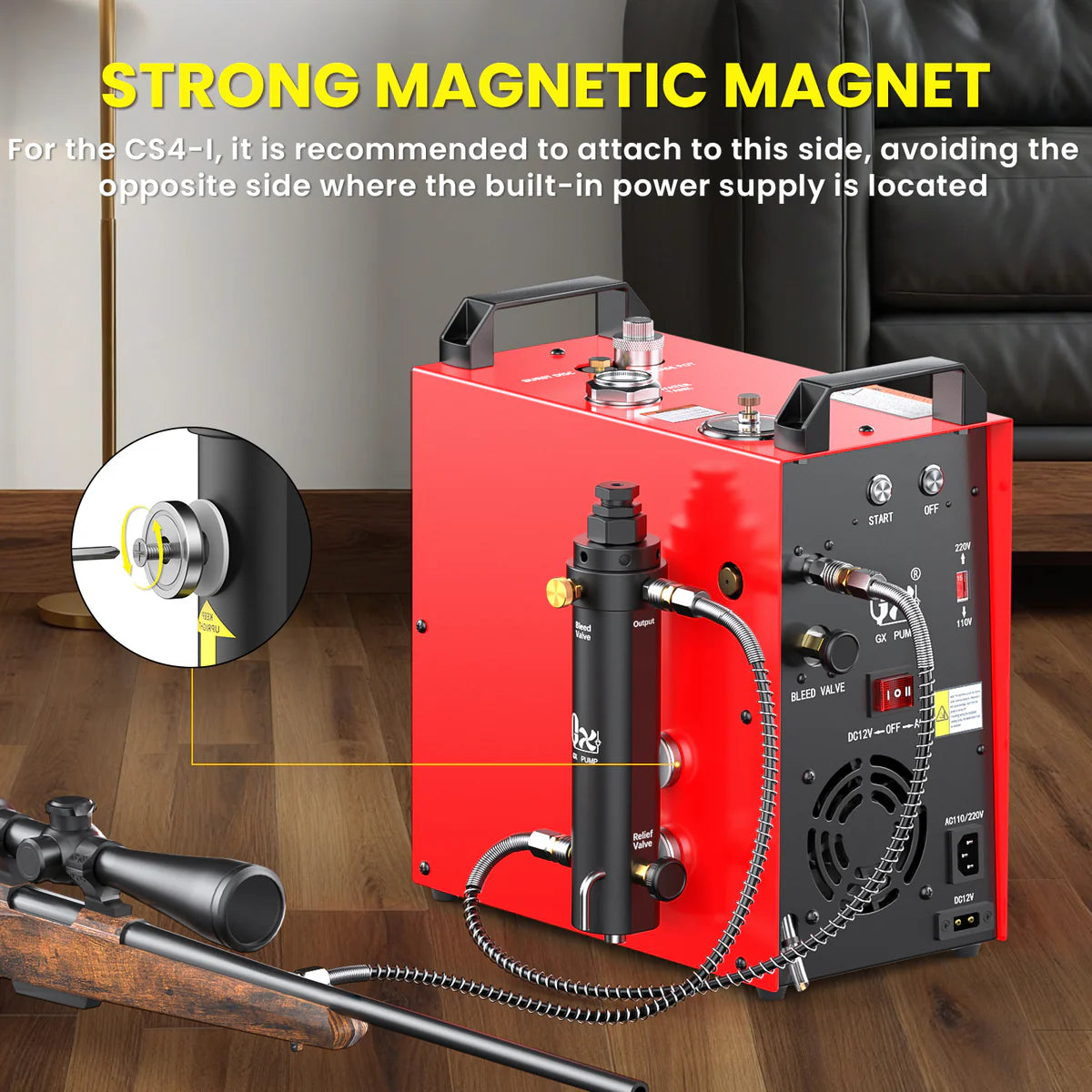

- Notice: When used with CS3-I or CS4-I models equipped with built-in converter, strong magnets may interfere with the power components. It is recommended to keep magnets clear of the built-in converter area. Refer to pictures which showing the area. For CS4-I, you can also attach to another compressor side without converter. For CS3-I, you can choose the bottom 2 magnet mounting holes.

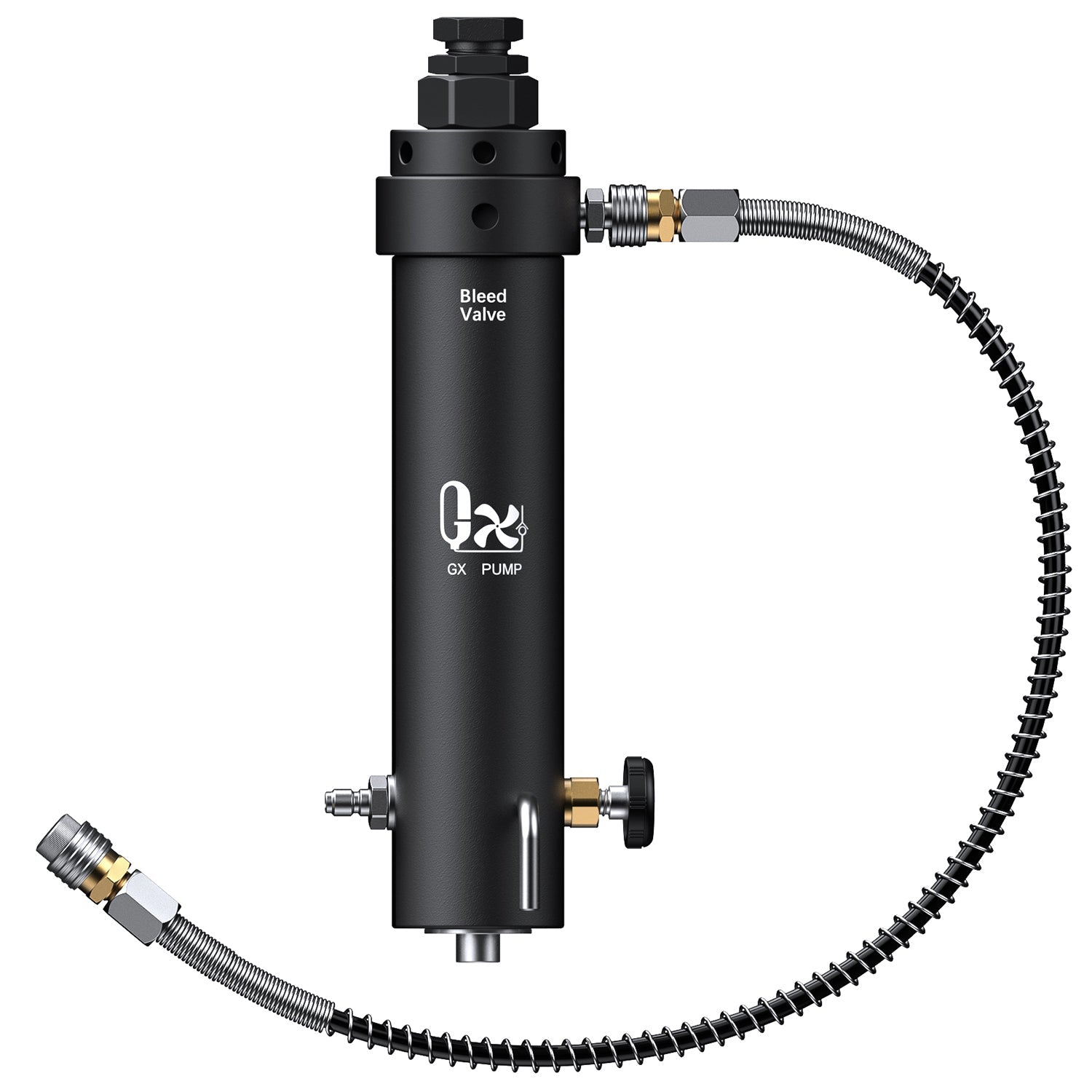

- Dimension:260mmx50mm/10.23×1.97" Wall Thickness:9.68mm Outer Diameter:50mm/1.97'' Hose: 21.65 inch, Application:For PCP air compressor,scuba diving tank compressor. Package includes GX filter, hose, 5 replacement cottons for filter elegment, a spare filter element. It means you will get two filter elements ( one was installed) so that you can use long time.
